Plot Standard Error Bias

Standard Error Bias for the model \(X \to M \to Y\).

Usage

FigScatterPlotSeBias(results, delta_t = NULL, dynamics = 0, std = FALSE)

Arguments

results

Summary results data frame.

delta_t

Vector of time-interval value. If delta_t = NULL, use all available time-intervals

dynamics

Integer. dynamics = 0 for original drift matrix, dynamics = -1 for near-neutral dynamics, and dynamics = 1 for stronger damping.

std

Logical. If std = TRUE, standardized total, direct, and indirect effects. If std = FALSE, unstandardized total, direct, and indirect effects.

See also

Other Figure Functions: FigPlotEffects(), FigScatterPlotCoverage(), FigScatterPlotPower(), FigScatterPlotType1(), IllustrationFigPlotEffects(), IllustrationFigScatterPlotCoverage(), IllustrationFigScatterPlotPower(), IllustrationFigScatterPlotSeBias()

Author

Ivan Jacob Agaloos Pesigan

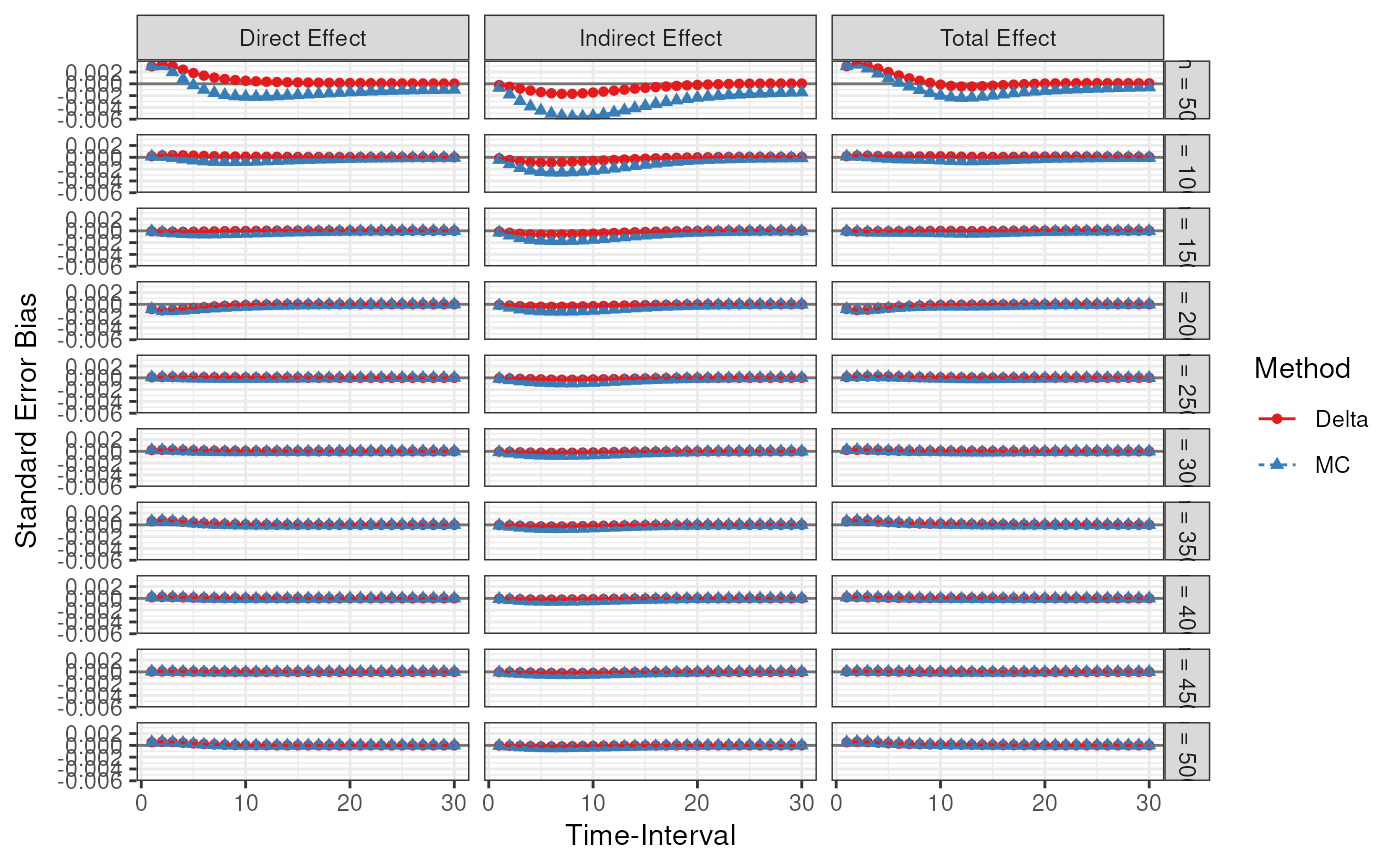

Examples

data(results, package = "manCTMed")
FigScatterPlotSeBias(results)
